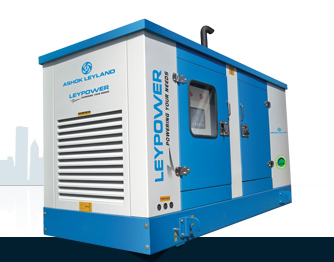

ASHOK LEYLAND AL 4H Series - LP35 (35KVA) Generator
Description
LEYPOWER Power Solutions is the fastest growing genset provider in India. With state-of-the-art technology in engine, alternator and controllers, LEYPOWER provides a fully integrated power system at par with global standards at a very competitive overall cost of ownership.
LEYPOWER ready-to-use diesel generating sets meet with the latest CPCB norms in India and built to comfortably meeting international norms. These sets are powered by the compact 4, 6, 8 and 12 cylinder series of diesel engines. Aesthetically designed, these DG sets are silent, environment-friendly require minimum maintenance and are low on operating costs.
Leypower diesel generating sets are manufactured in the state-of-the-art plants located across 6 units in the country using the latest machinery and skill sets to roll out well engineered DG sets.
The present range extends from 10-2250 kVA with generating sets manufactured to operate under arduous conditions.
SPECIFICATION
| parameters | description |
|---|---|
| Power Rating (KVA) | 35 |
| Electric Power (KWe) | 28 |
| Rated Current (A) | 48.6 |
| No of Phases/Volts* | 3/415 |
| Oveall Dimensions (L X W X H, mm x mm x mm) | 2500 x 1100 x 1350 |
| Fuel Tank Capacity (Litres) | 50 / 60 |
| Battery Capacity (AH) | 99 |
| System Voltage (VDC) | 12 |
| Weight (Kg) | 1086 |
ENGINE SPECIFICATION
| Parameters | Description |
|---|---|
| Engine Model | WO4DMK1 |
| Engine Max HP | 46.4 |
| Engine Rated HP | 48.7 |
| Aspiration | Natural |
| No of Cylinders | 4 |
| Bore & Stroke (mm x mm) | 104 x 118 |
| Displacement (Litres) | 4.009 |
| Compression Ratio | 17.9:1 |
| Lub oil Sumb Capacity (Litres) | 7.5 |
| Lub oil Consumption | <0.15% |
| Coolant Capacity (Litres) | 15.0 |
| Governing Class | A1 |
ALTERNATOR SPECIFICATION
| Parameters | Description |
|---|---|
| Model | P 14J1 |
| Type | 4 pole |
| Exciter type | Brushless |
| Voltage regulator | AVR-SX460 |
| Insulation | Class H |
| Temperature rise (°C) | 125 |
| Bearing | ±Single |
| Voltage regulation | ±0.5% |
| Rated Voltage (V) | 415 |
SPECIFICATION FOR STANDARD MANUAL PANEL
| Parameters | Description |
|---|---|
| SWITCH GEAR | 3pole MCB / MCCB |
| Analogue Gauge |
|
| Digital Multifunction meter | Voltage/Ampere/Frequency |
| Fault Indication (LED Type on Engine safety Unit) |
|
| Current Transformers of suitable rating | |
| Indications (LED): |
|
| Control | Key switch for Start/Stop |
SPECIFICATION FOR STANDARD AMF PANEL
| Parameters | Description |
|---|---|
| SWITCH GEAR |
|
| Features |
|
| Multifunction meter |
|
| Analogue meter |
|
| Indication Lamps |
|
POWER RATING
| Parameters | Description |
|---|---|
| Reference condition (Dec C Ambient Temp) | 27 |
| Atmospheric Condition (KPA -750mm of Hg) | 100 |
| Humidity | 60% - As per IS10002, ISO 3046 |
