Model |

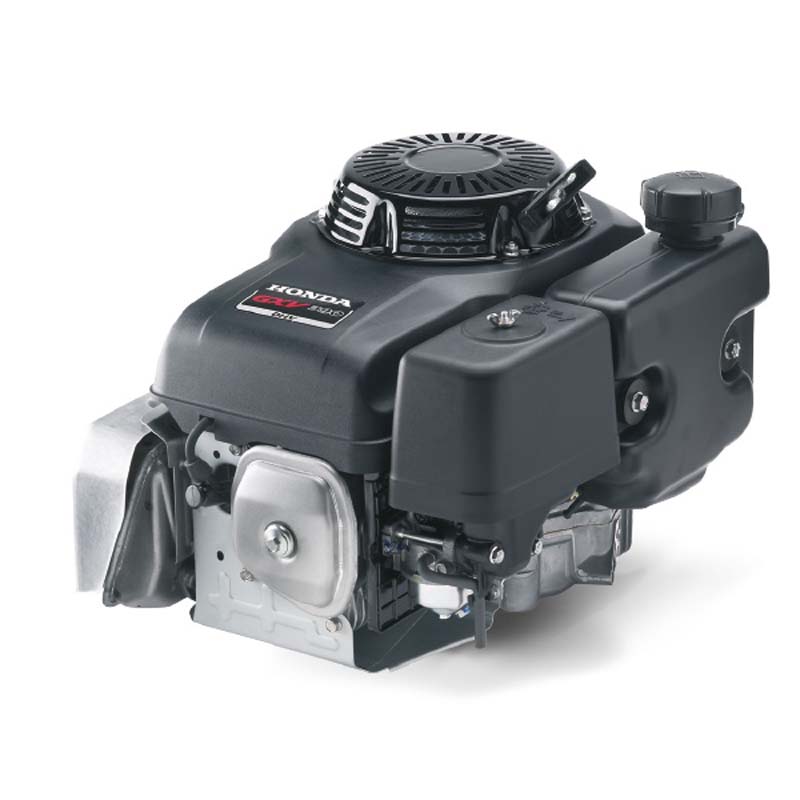

GXV390 |
|
Type |
4-stroke single cylinder OHV petrol engine horizontal shaft |
|
Cylinder sleeve type |
Cast iron sleeve |
|
Bore x Stroke |
88 x 64 mm |
|
Displacement |
389 cm³ |
|
Compression ratio |
7.7 : 1 |
|
Net power |
7.6 kW ( 10.2 HP ) / 3600 rpm |
|
Cont rated power |
5.2 kW ( 7.0 HP ) / 3000 rpm |
|
Max. net torque |
24.2 Nm / 2.47 kgfm / 2500 rpm |
|
Ignition system |
Transistorised |
|
Starter |
Recoil (el. start optional) |
|
Fuel tank capacity |
2.1 Liter |
|
Fuel cons. at cont. rated power |
2.5 L/h - 3000 rpm |
|
Engine oil capacity |
1.1 Liter |
|
Dimensions (L x W x H) |
430 x 385 x 410 mm |
|
Dry weight |
33 kg |
