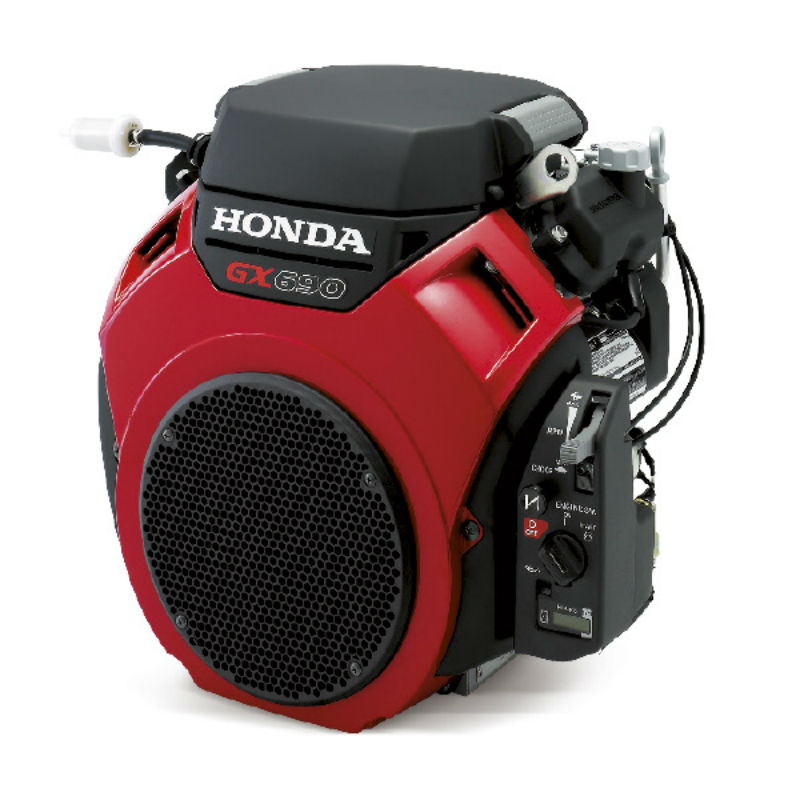

Model
|
GX690
|
|
Type
|
4-stroke 2-cylinder
OHV petrol engine
90° V-twin design
horizontal shaft
|
| Cylinder sleeve type |
Cast iron sleeve |
|
Bore x Stroke
|
2 / 78 x 72 mm
|
|
Displacement
|
688 cm³ |
|
Compression ratio
|
9.3 : 1
|
|
Net power
|
16.5 kW ( 22.1 HP ) / 3600 rpm
|
|
Cont rated power
|
11.5 kW ( 15.4 HP ) / 3000 rpm
13.0 kW ( 17.4 HP ) / 3600 rpm
|
|
Max. net torque
|
48.3 Nm / 4.93 kgfm / 2500 rpm
|
|
Ignition system
|
Digital CDI with variable ignition timing |
|
Starter
|
Electric |
|
Carburettor
|
2-barrel, fuel cut solenoid
|
|
Lubrication
|
Full-pressure
|
|
Fuel cons. at cont. rated power
|
6.7 L/h - 3600 rpm
|
|
Engine oil capacity
|
1.9 Liter
|
|
Dimensions (L x W x H)
|
429 x 410 x 438 mm
|
|
Dry weight
|
44.6 kg
|
